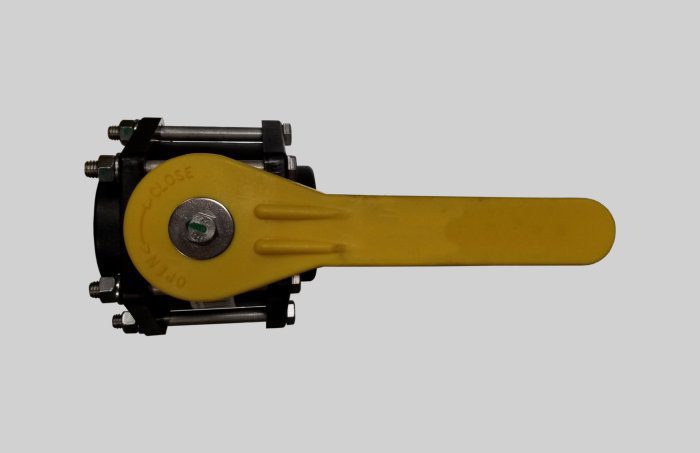

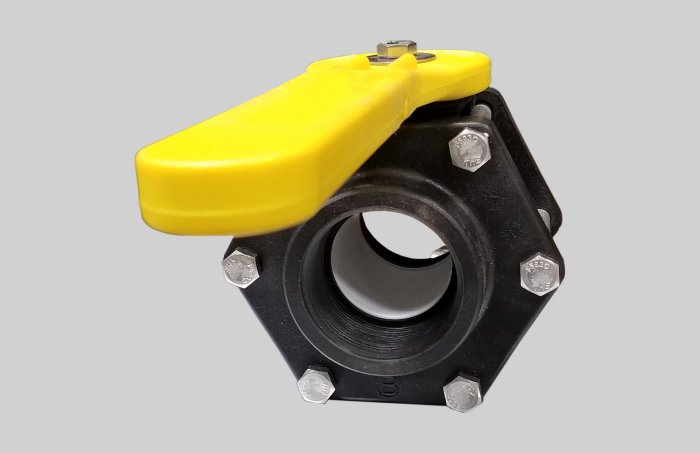

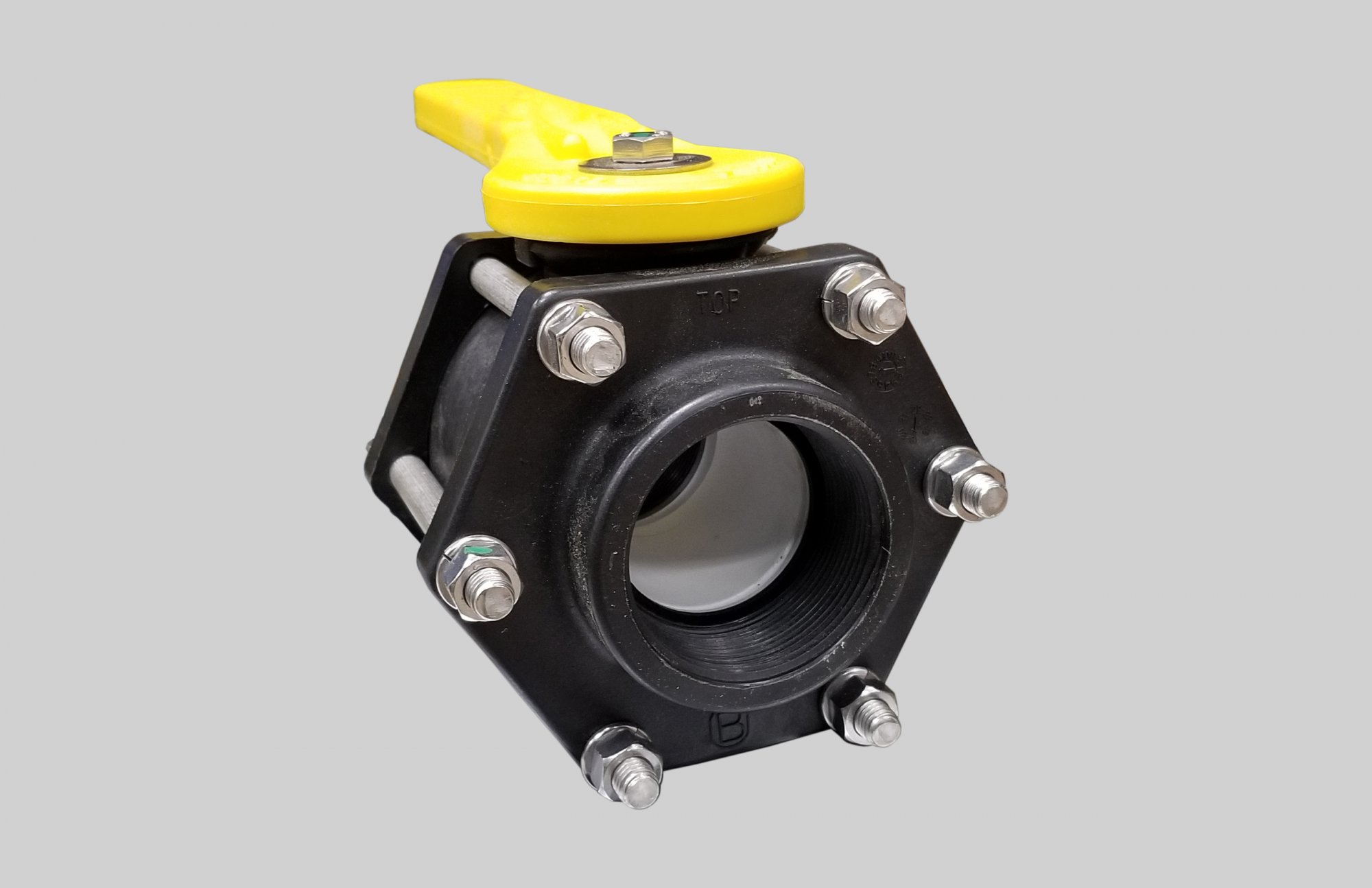

Polypropylene Ball Valves

Precision Molded in Polypropylene – reinforced with fiberglass for additional strength
Sizes 2″ – 4″ with FKM seals.
304 Stainless Steel Bolts and nuts
Self-aligning ball moves freely against the PTFE seats for smooth operation.
The valve opens or closes with very little pressure on the handle.
Ball is diamond turned, after molding, to make it spherically perfect, which provides precise contact between ball and seats.
PTFE self-lubricating stem bushings and seats cannot stick or bind.

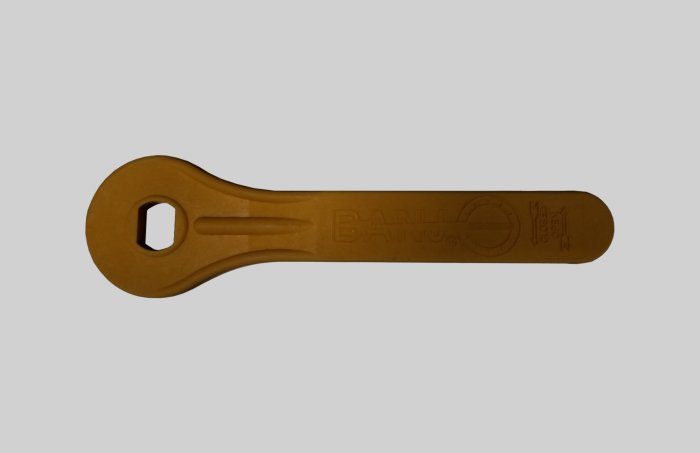

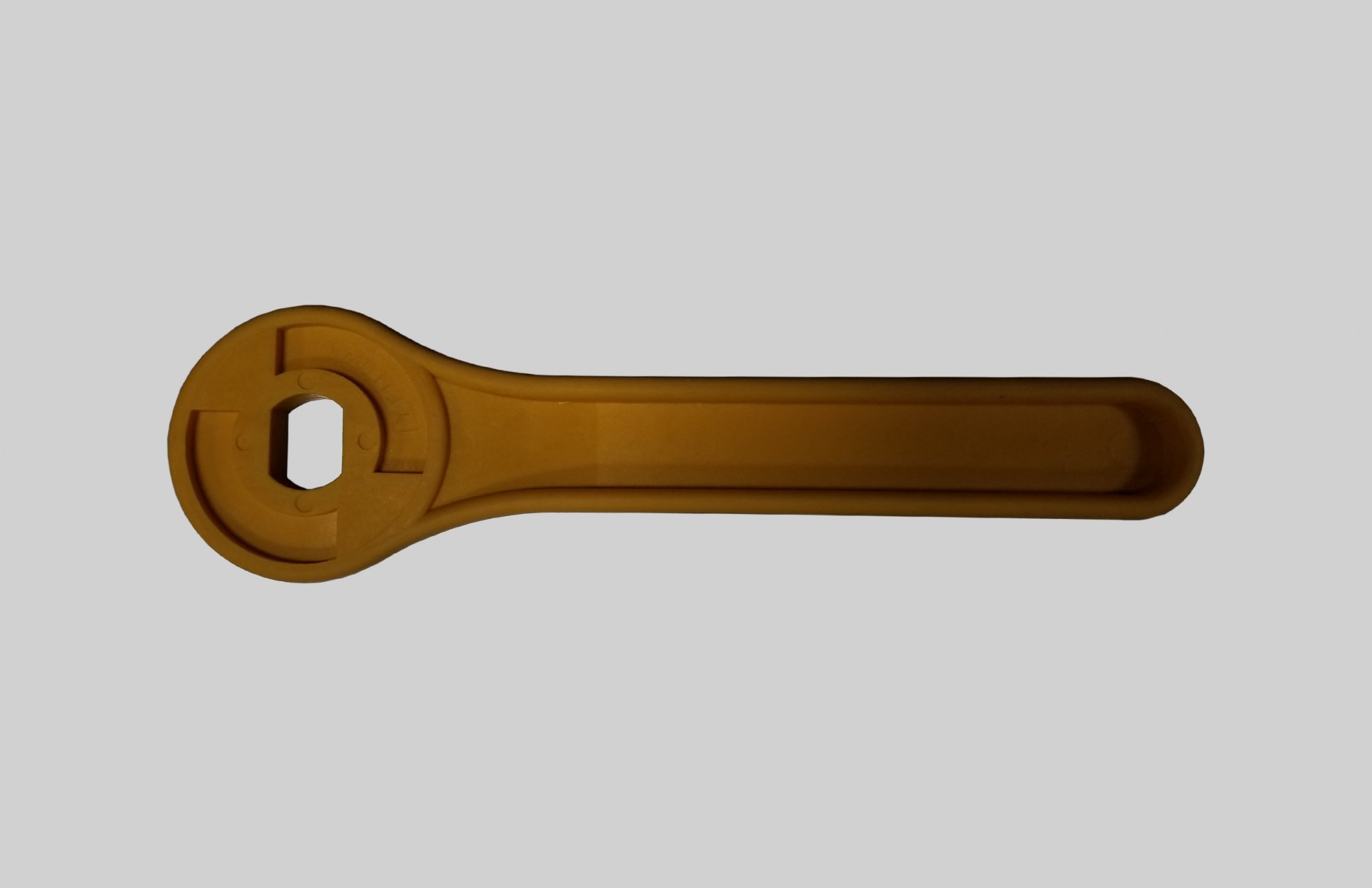

Handles also available – BVPPH200

Description

Precision Molded in Polypropylene – reinforced with fiberglass for additional strength
Sizes 2″ – 4″ with FKM seals.
304 Stainless Steel Bolts and nuts
Self-aligning ball moves freely against the PTFE seats for smooth operation.
The valve opens or closes with very little pressure on the handle.
Ball is diamond turned, after molding, to make it spherically perfect, which provides precise contact between ball and seats.
PTFE self-lubricating stem bushings and seats cannot stick or bind.

Handles also available – BVPPH200

Standard Handle
Part #	Description
6200D	4” Tight fill side lever elbow with 4” female inlet
6200T14	4” Tight fill side lever elbow with 4” female inlet and anti-spill sleeve
6200X14	4” Tall Tight fill side lever elbow with 4” female inlet
6200XT14	4” Tall Tight fill side lever tall elbow with 4” female inlet and anti-spill sleeve

Locking Handle
Part #	Description
6500	DROP ELBOW C/W LOCK HANDLE
65001	4” Tight fill side lever elbow with 4” female inlet
6500T14	4” Tight fill side lever elbow with 4” female inlet and anti-spill sleeve
6500X14	4” Tall Tight fill side lever elbow with 4” female inlet
6500XT14	4” Tall Tight fill side lever tall elbow with 4” female inlet and anti-spill sleeve
